Create your first Kafka Connect runtime for an IBM MQ source connector

Last updated: 16 March 2025

This post contains the steps to create your first Kafka Connect runtime.

This runtime implements the IBM MQ source connector.

The full IBM documentation can be found at Install an IBM MQ source connector.

Reason for writing this post

While I find the IBM documentation perfect as reference when you have solid understanding of IBM Event Streams, I found it challenging the first time I created a Kafka Connect runtime with an associated Kafka ‘Source’ Connector for IBM MQ.

This guide attempts to add some clarity to the page - details that weren’t clear to me while I was learning. It also describes my learning journey including problems I faced, perhaps related to my habit of not reading documentation thouroughly enough.

Prerequisites

Ensure IBM Event Streams has been installed in OpenShift and available in your namespace.

How to check whether IBM Event Streams is available to your namespace

Log into the OpenShift console.

Select Installed Operators.

Installed Operators

Search for IBM Event Streams. If this is found, you’re ready to go.

Installed Operators

If you click on IBM Event Streams, you’ll see many tabs. The two tabs we are interested in are:

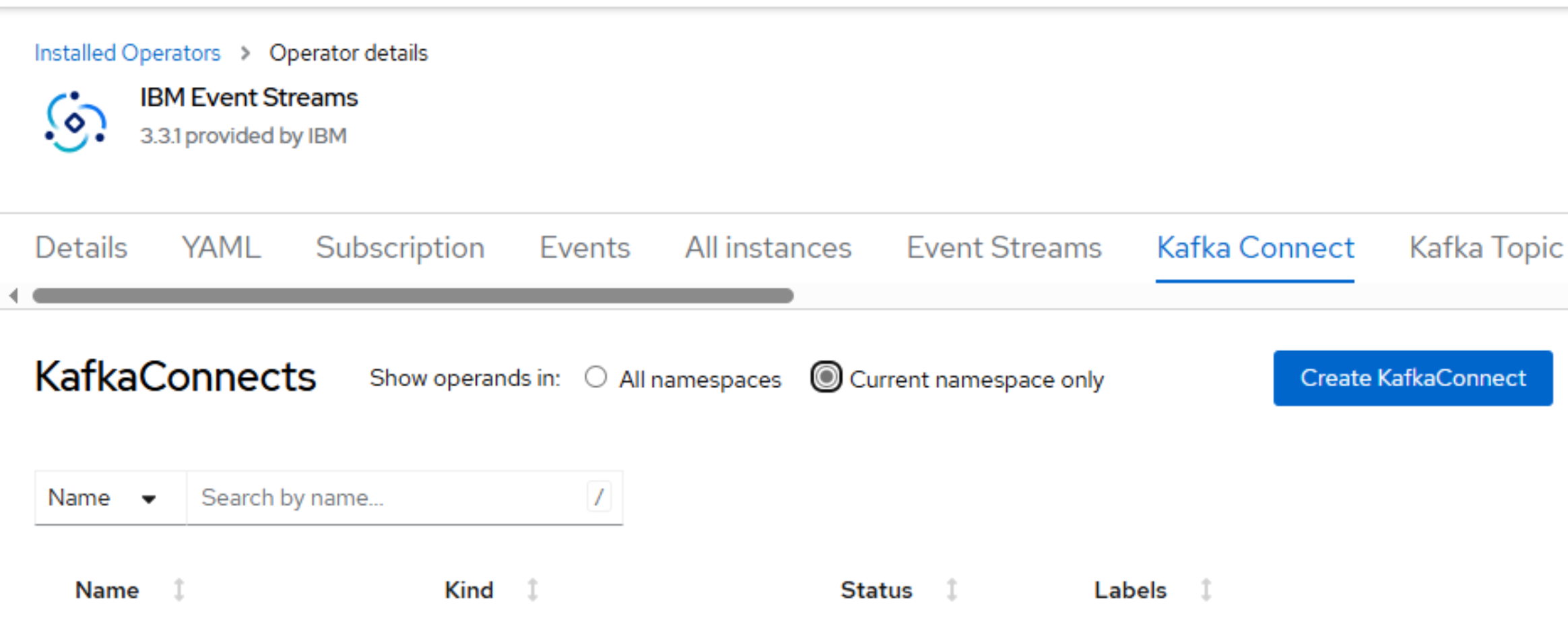

Kafka Connect

Installed Operators

Kafka Connector

Installed Operators

Handy URLs

Prior to starting, I suggest you have a quick scan of the handy URLs post.

This post contains a list of URLs I found most useful while creating my first Kafka Connect runtime and associated IBM MQ source connectors.

Let’s go

There’s essentially 3 steps:

  • Build the Kafka Connect image

  • Deploy the Kafka Connect runtime

  • Deploy the Kafka Connector

The most useful URL I found was Install an IBM MQ source connector.

Step 1. Build the Kafka Connect image

My difficulties at the start

Perhaps the easiest yet most challenging step for me the ‘first’ time was to build the Kafka Connect image.

Why I hear you say!

For whatever reason, I had a difficult time finding the location to download the kafka-connect-mq-source-n.n.n.jar file.

The n.n.n refers to the connection jar version.

Eventually I found a compiled version (kafka-connect-mq-source-2.0.0.jar) could be downlaoded from IBM Fix Central so long as your IBM ID had an entitlement to download the connector jar files.

This URL has a comment “Kafka Connect MQ Source old version. For new version visit https://ibm.github.io/event-automation/connectors/kc-source-ibm-mq/installation”.

Later, I discovered IBM is posting the compiled Kafka Connect mq source connector (kafka-connect-mq-source-2.3.0.jar) open source versions to github.com - lucky that my company policy blocks downloads from github.com!

I was informed by my local rep that IBM will provide support if we face problems - we have enterprise support for IBM Event Streams. I’m not sure how the open source support works but I do see the license is the Apache License 2.0 and I do see a “raise issue” link.

Early on I started with the kafka-connect-mq-source-2.0.0.jar file. In my wisdom, when I created the image, I didn’t add the dependencies. I have a bad habit of not fully reading documentation. I didn’t realize they were all missing from the kafka-connect-mq-source-2.0.0.jar file. Considering in the kafka-connect-mq-source-2.3.0.jar files IBM have provided a jar containg all the dependencies I suspect I’m not the only one!

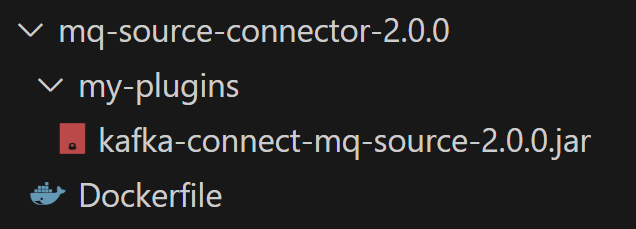

The following shows the build files missing the dependencies.

missing dependencies

When I deployed my Kafka Connect runtime with a Kafka Connector I got a class not found exception. I had no idea why.

class not found

Eventually, after assistance, I realized I needed to add the dependencies.

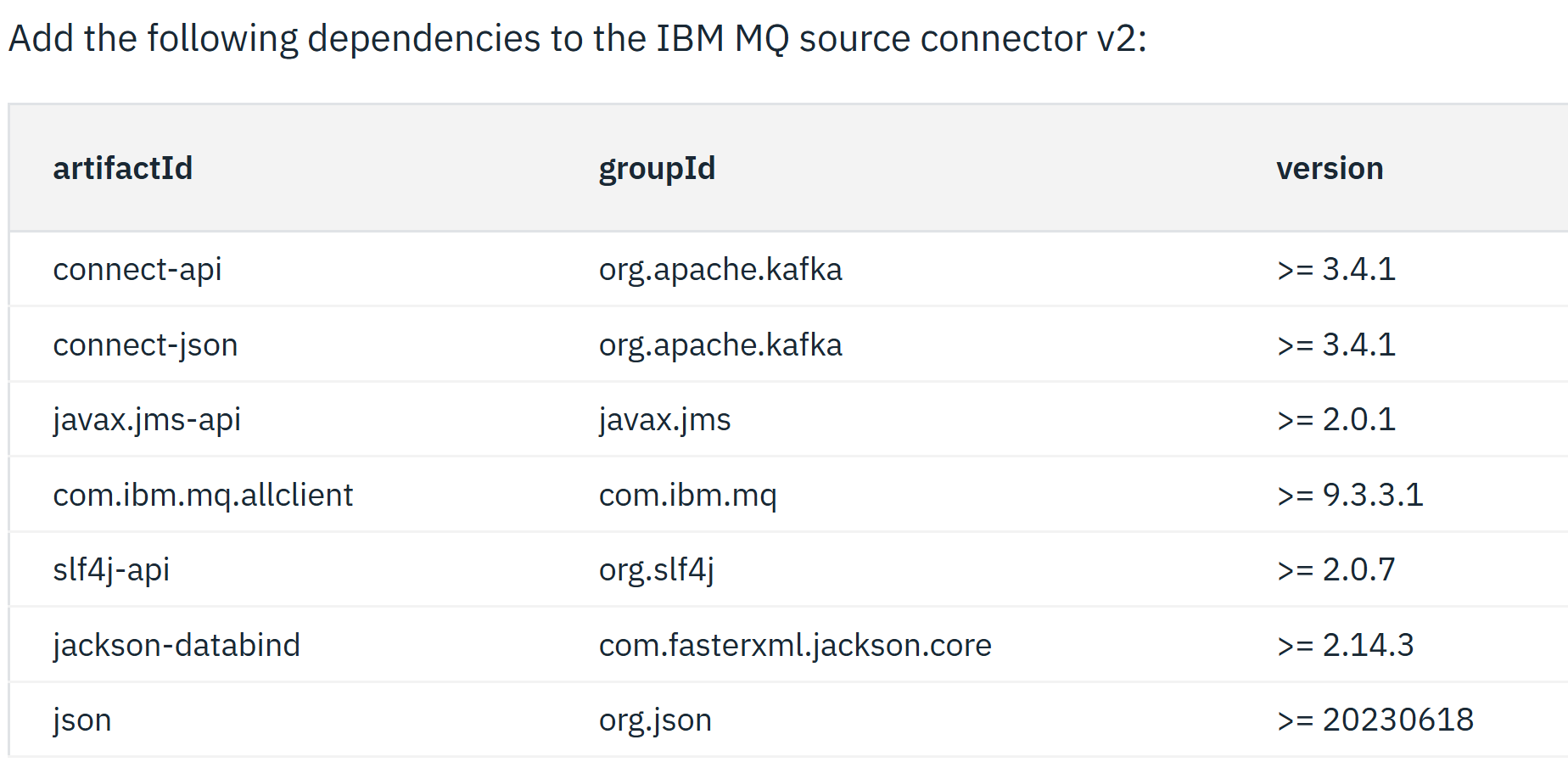

dependencies

You cannot imagine the pain I went through trying to locate the dependencies. I found the URL, didn’t bookmark it, and could never locate it again. Eventually I realized why. I found the dependencies on the Event Streams 11.4 post, but when I came back later, the version had changed to 11.6. The 11.6 page doesn’t list the dependencies as IBM now provides jar files containg the depenencies. The default IBM page lists the latest version, which at the time had changed from 11.4 to 11.6.

You can download the dependencies from maven central. If you’re like me and not a developer, you may find the below helpful.

artifactId groupId version Maven Central
connect-api org.apache.kafka >= 3.4.1 https://mvnrepository.com/artifact/org.apache.kafka/connect-api
connect-json org.apache.kafka >= 3.4.1 https://mvnrepository.com/artifact/org.apache.kafka/connect-json
javax.jms-api javax.jms >= 2.0.1 https://mvnrepository.com/artifact/javax.jms/javax.jms-api
com.ibm.mq.allclient com.ibm.mq >= 9.3.3.1 https://mvnrepository.com/artifact/com.ibm.mq/com.ibm.mq.allclient
slf4j-api org.slf4j >= 2.0.7 https://mvnrepository.com/artifact/org.slf4j/slf4j-api
jackson-databind com.fasterxml.jackson.core >= 2.14.3 https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind
json org.json >= 20230618 https://mvnrepository.com/artifact/org.json/json

The next mistake I made was placing all the jars in the my-plugins directory and not a sub-directory. The manually add required connectors clearly states the requirements when multiple jar files are involved, but I managed to miss these details.

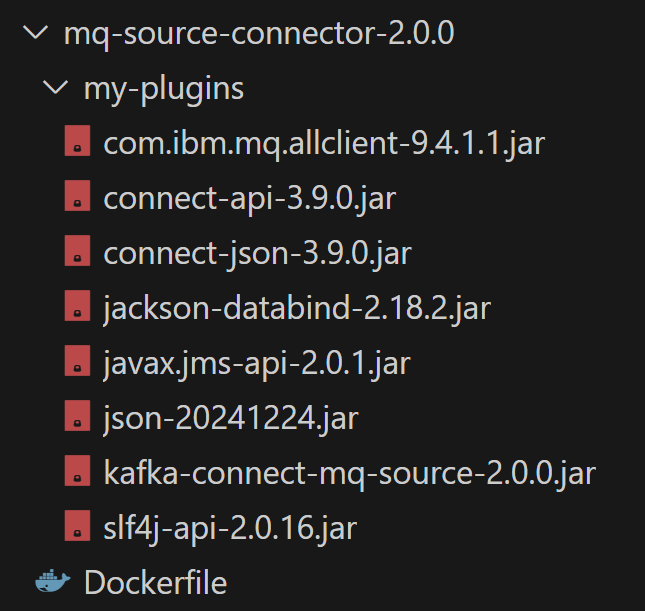

dependencies wrong location

I rebuilt the image and still got an error.

Eventually I got the structure correct, rebuilt the image and all was ok.

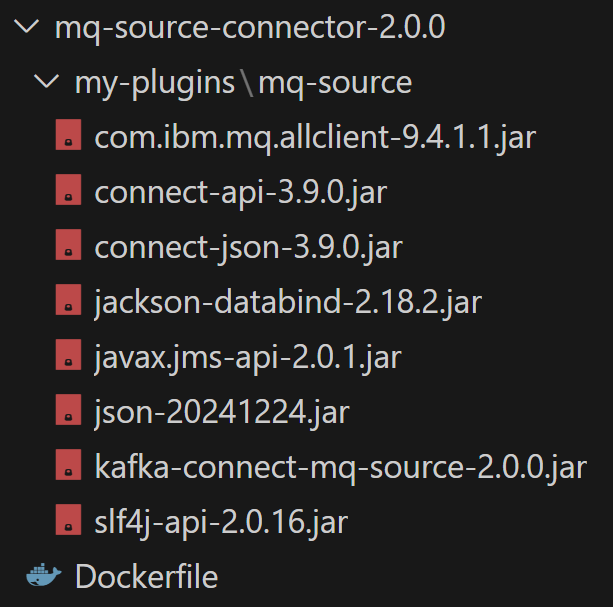

dependencies correct structure

Thankfully, with the latest connector (at the time or writing), IBM have provided multiple jar files, one containing all the dependencies.

Be aware, the below links start a download.

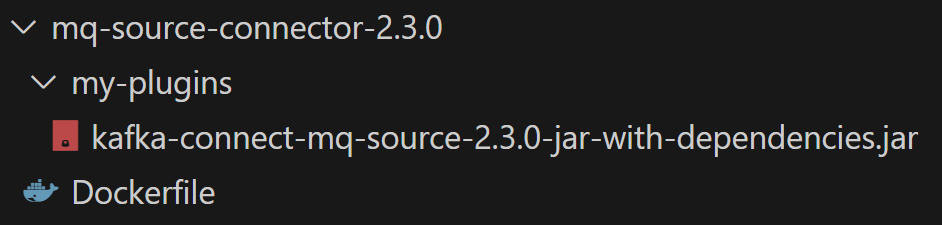

For the kafka-connect-mq-source-2.3.0 file, I built the image using the following structure.

dependencies correct structure

Step 2. Create the Kafka Connect runtime

Create the Kafka Connect runtime in OpenShift.

Secrets

Prior to deploying the Kafka Connect runtime, create two secrets:

  • The first secret contains the user authorization keys that will be used to connect to the Kafka cluster.

  • The second secret contains the CA certificates used to establish a TLS connection to the Kafka cluster.

User credential

==============

As it turned out this jar file is missing the dependencies.

You can download the dependencies from maven or from the IBM MQ support page

Fortunately, the later files kafka-connect-mq-source-2.3.0-jar-with-dependencies.jar contain the dependencies.
